Tuesday, February 12, 2013

Oval Forms; slab-built: part two

cutting out the patterns
bevelling the edge
(this is the second part; part one is here)
    Once I've tested the patterns with an actual clay trial form, and know that the patterns are going to work, I roll out a clay slab, flipping the slab over each time I roll it.  To keep the slab even, I use two 1/4 inch  dowels on either side, like train tracks, on which the rolling pin can roll.  The table surface is a piece of granite, smooth, and slightly absorbant.  The sheeting (part polyester--doesn't wrinkle as much....) makes it easier to lift the slab, each time it's rolled out, so that I can flip it over before I roll it out, again.  Then I cut as many forms out of one slab as I can fit--I hate having to recycle the slabs if I don't have to!  The oval base goes into the bottom of the plaster mold, and its outer edges are pressed and thinned once the base is in place.    The side pieces get a bevel cut at each end, where the ends will overlap each other.  The top edge of the curved side piece is smoothed, now, as well.
placing the cut shapes into the mold

 Once all the pieces are in place, (I scrub the areas to be joined with a toothbrush dipped in vinegar) they're smoothed down, and pressed against the bottom and side with my fingers.  I also put a soft coil around the oval, at the inside base of the piece, and up the sides at
 the joining of the two sides.
fitting the side pieces on top of the base
 Then I dip a small blue (or red) rubber rib into water, and smooth all of the inside. The top edge is smoothed, again, with a chamois, and the the top edge is fluted.  At this point, I have to let the piece dry out enough so that it can be lifted out of the mold.  If I'm done working for the day, then I cover the mold and clay form with a sheet of plastic, and come back to it in the morning.  Otherwise, I can let it sit out for a while until the wet/leatherhard clay will release from the plaster.

 Final work on this piece will continue in a third post.

Sunday, February 10, 2013

Oval forms; slab-built

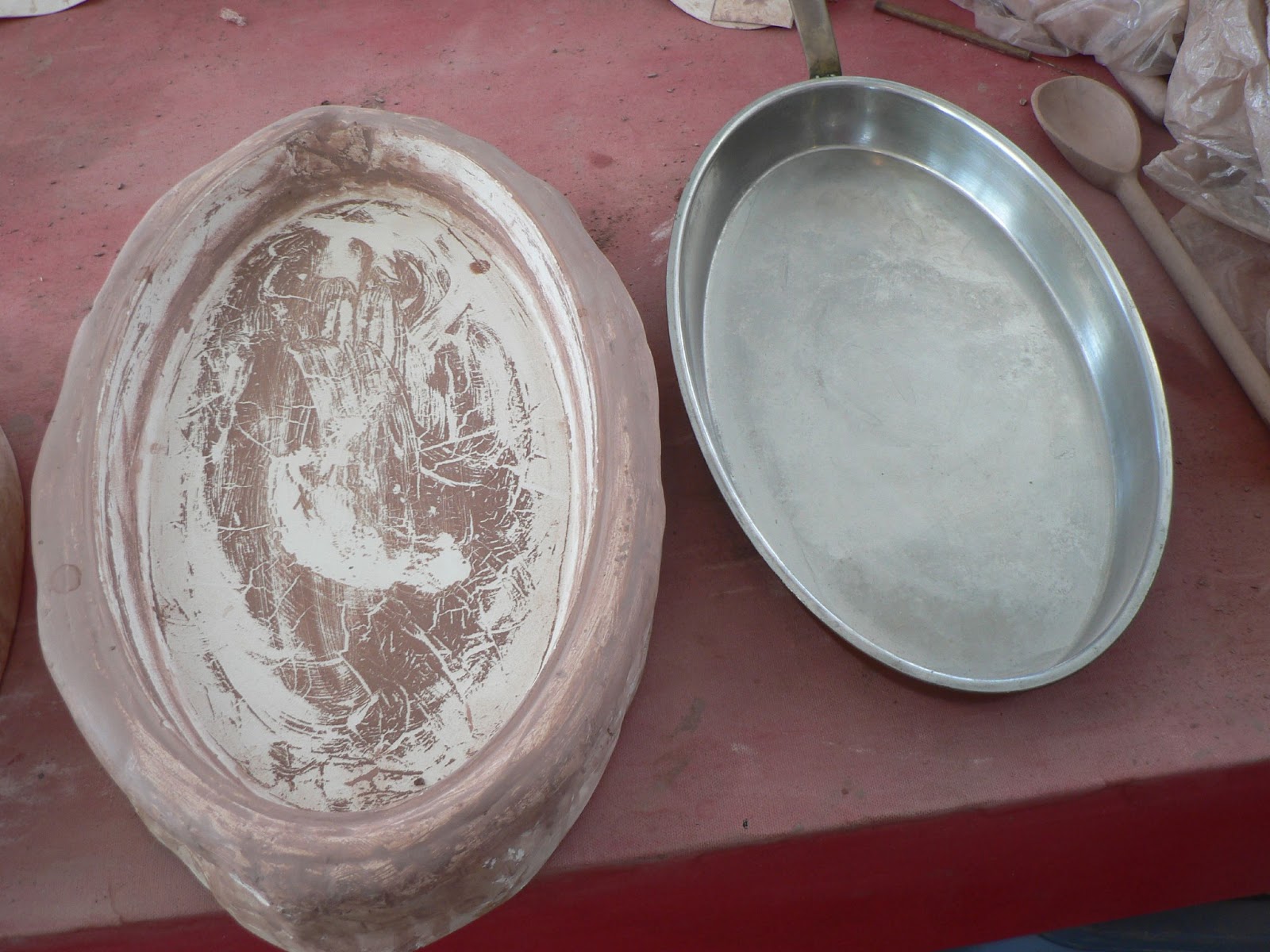

this first form was cast from a flat pan (seen to the right)

some of the oval shapes I work with; the one on the right is the commercially made mold
 In the following 3 or so posts, I will be talking about constructing an oval, flat-bottomed form which could be used as a casserole without a lid (though a lid could be added).  I'm intrigued by the oval  because it is not something which can be made on the wheel (unless you intentionally distort the form after it is thrown). I'll start, here, with some of the forms which I make using a plaster mold.  One of the molds was a commercial shape; the rest are forms which I have cast, myself.  All the patterns for cutting the clay to put into the mold were made after the plaster mold was finished.
 In order to make the patterns, I first work with a lightweight paper like newsprint. To start, I push a slightly larger oval  piece of paper into the bottom of the mold.  Then I run my fingers around the outer edge of what I perceive to be the bottom until I can see where to cut the oval base shape.  Then I take a pencil and draw the cutting line, and then cut the shape, itself.  I then do the same thing with one-half of the side.  The shape of the side is something like the shape of a lampshade that is laid out on a flat surface.  It's like a rhomboid (OK, not really, but...) with a curved top and bottom edge.  These first thin paper patterns are done on a trial basis, and, after using them to cut out the initial clay forms, and after pressing the clay forms into the plaster mold, adjustments can be made so that the pieces fit together more precisely.  The third image, here, below, shows the final patterns, (along with one of the finished and fired pieces).  The final pattens are made from a sort of plastic paper: impossible to tear, and fairly easy to cut with sharp scissors.  It was 'paper' given to me when I was a den mother for Pete's cub scout group.  I was never able to figure out what to do with it with the boys, but, years later, I discovered that it made good patterns for cutting out clay shapes. It's strong enough to be laid on wet clay without wrinkling up, and strong enough to have a needle tool run around its outside edge, over and over, without distorting. In the next post, I'll show how the clay is cut and placed into the plaster mold.
Here is the mold (which I call 'long'), with its patterns, and with the finished pot
